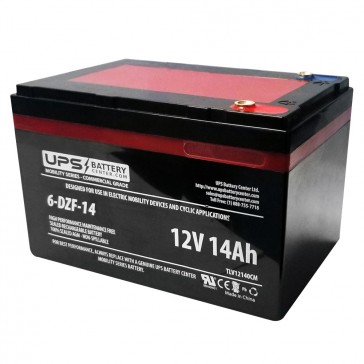

6-DZF-14 (6-DZM-14) 12V 14Ah Deep Cycle Mobility Battery

Features of the 6-DZF-14 (6-DZM-14) 12V 14Ah Deep Cycle Mobility Battery

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge

Applications

• e-bike / ebike
• electric scooters
• electric skateboard / electric children's scooter
• children's ride on toys
• mobile medical carts

Product Specifications

Dimensions
Terminal Type: M5 - Insert Terminal (screws included)
Length (mm/inch): 151mm / 5.94"
Width (mm/inch): 98mm / 3.85"
Height (mm/inch): 98mm / 3.85"
Total Height (mm/inch): 104mm / 4.09"
Approx. Weight (kg/lbs): 4.4 kg / 9.7 lbs

Performance Characteristics of the 6-DZF-14 (6-DZM-14):

Nominal Voltage: 12V

Nominal Capacity (2 Hour Rate): 14Ah

Capacity 25°C (77°F):
20 Hour Rate (0.90A): 18Ah
10 Hour Rate (1.7A): 17Ah
1 Hour Rate (11.6A): 11.6Ah

Internal Resistance:
Fully Charged Battery 25°C: ≤9mΩ

Capacity Affected Temperature (10 Hour):
40°C (104°F): 102%
25°C (77°F): 100%
0°C (32°F): 85%
15 (5°F): 65%

Self Discharge 25°C (77°F) Capacity:
After 3 Months Storage: 90%
After 6 Months Storage: 80%
After 12 Months Storage: 62%

Charge (Constant Voltage) 25°C (77°F):
Float: Initial Charging Current less than 4.35A Voltage 13.6 - 13.8V
Cycle: Initial Charging Current less than 4.35A Voltage 14.5 - 14.9V

Battery Diagram:

Constant Current Discharge Characteristics

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.

Battery Construction

Recommended Setting Parameters
