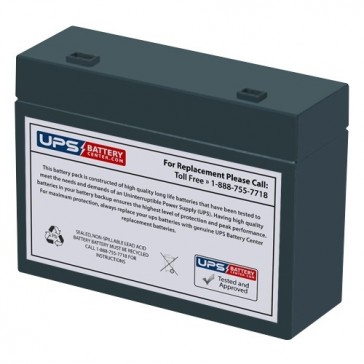

Features of the TLV1260A - 12V 6Ah Sealed Lead Acid Battery with Recessed Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge

Applications

• UPS Standby Power Applications
• Data Centers
• Emergency 911 Centers
• Hospitals & Medical Applications
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Alarm Devices

Product Specifications

Dimensions
Terminal Type: RT +F2 / -F1
Length (mm/inch): 140/5.51
Width (mm/inch): 48/1.89
Height (mm/inch): 102/4.02
Total Height (mm/inch): 103/4.06
Approx. Weight (kg/lbs): 1.8/3.97

Performance Characteristics

Nominal Voltage: 12V

Nominal Capacity 77ºF (25ºC)
20HR (10.5V): 6Ah
10HR (10.5V): 5.6Ah
1HR (9.60V): 3.9Ah

Internal Resistance
Fully Charged battery 77ºF(25ºC): Approx. 22mΩ

Capacity Affected by Temperature (20 Hour)
40°C: 102%
25°C: 100%
0°C: 85%
-15°C: 65%

Self-Discharge (25°C)
3 Month: Remaining Capacity: 91%
6 Month: Remaining Capacity: 82%
12 Month: Remaining Capacity: 65%

Nominal Operating Temperature:
25°C±3°C (77°F±5°F)

Operating Temperature Range
Discharge: -15°C～50°C(5°F～122°F)
Charge: -10°C～50°C(14°F～122°F)
Storage: -20°C～50°C(-4°F～122°F)

Float Charging Voltage (25°C):
13.60 to 13.80V Temperature compensation: -18mV/°C

Cyclic Charging Voltage (25°C):
14.50 to 14.90V Temperature compensation: -30mV/°C

Maximum Charging Current: 1.8A

Maximum Discharge Current: 90A (5 sec)

Terminal Material: Copper

Designed Floating Life: 10 Years

Constant Current Discharge Characteristics

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.
