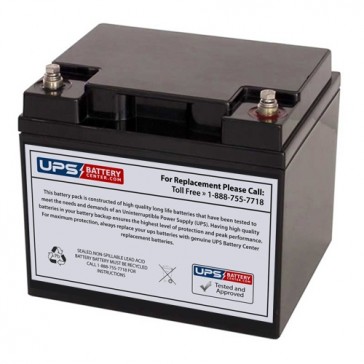

12V 45Ah Sealed Lead Acid Battery with M6 Insert Terminals

Features of the TLV12450M6 - 12V 45Ah Sealed Lead Acid Battery with M6 - Insert Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge

Applications

• UPS Standby Power Applications
• Data Centers
• Emergency 911 Centers
• Hospitals & Medical Applications
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Alarm Devices

Product Specifications

Dimensions

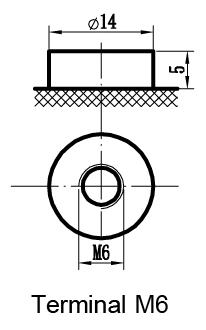

Terminal Type: M6
Length (mm/inch): 198/7.79
Width (mm/inch): 166/6.53
Height (mm/inch): 171/6.73
Total Height (mm/inch): 171/6.73
Approx. Weight (kg/lbs): 13.5/29.7

Performance Characteristics

Cells Per Unit: 6

Voltage Per Unit: 12

Capacity: 45Ah@10hr-rate to 1.80V per cell @25°C

Maximum Discharge Current:
450A (5 sec)

Internal Resistance:
Approx. 8mΩ

Operating Temperature Range
Discharge: -20°C～60°C
Charge: 0°C～50°C
Storage: -20°C～60°C

Nominal Operating Temperature Range:
25°C±5°C

Float Charging Voltage:
13.6 to 13.8 VDC/unit Average at 25°C

Recommended Maximum Charging Current: 13.5A

Equalization and Cycle Service:
14.6 to 14.8 VDC/unit Average at 25°C

Self Discharge:
Batteries can be stored for more than 6 months at 25°C.
Self-discharge ratio less than 3% per month at 25°C.
Please charge batteries before using.

Container Material: A.B.S. UL94-HB, UL94-V0 Optional.

Constant Current Discharge Characteristics

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.

Battery Construction
