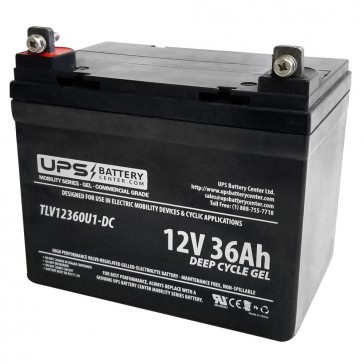

12V 36Ah U1 GEL Deep Cycle Sealed Lead Acid Battery with Nut & Bolt Terminals

Features of the TLV12360U1-DC - 12V 36Ah Deep Cycle GEL Battery with Nut & Bolt Terminals

• Gelled electrocycle, deep cycle battery
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67, No special handling requirements
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation, non-spillable
• Low self discharge

Applications

• Mobility Devices
• Mobility assistive devices
• Golf caddies, golf carts
• Booster packs, Power Packs

Product Specifications

Dimensions
Terminal Type: Nut & Bolt - Hardware included
Length (mm/inch): 195 / 7.68
Width (mm/inch): 130 / 5.12
Height (mm/inch): 155 / 6.10
Total Height (mm/inch): 180 / 7.09
Approx. Weight (kg/lbs): 10.3 / 22.7

Performance Characteristics

Internal Resistance
Fully Charged battery 77ºF(25ºC): Approx. 10.5mΩ

Capacity Affected by Temperature (20 Hour)
40°C: 103%
25°C: 100%
0°C: 88%
-15°C: 70%

Self-Discharge (25°C)
3 Month: Remaining Capacity: 94%
6 Month: Remaining Capacity: 88%
12 Month: Remaining Capacity: 75%

Nominal Operating Temperature:
25°C±3°C (77°F±5°F)

Operating Temperature Range
Discharge: -15°C～55°C (5°F～131°F)
Charge: -10°C～55°C (14°F～131°F)
Storage: -20°C～55°C (-4°F～131°F)

Float Charging Voltage (25°C):
13.50 to 13.80V Temperature compensation: -18mV/°C

Cyclic Charging Voltage (25°C):
14.10 to 14.40V Temperature compensation: -30mV/°C

Maximum Charging Current: 7.2A

Maximum Discharge Current: 330A (5 sec)

Terminal Material: Copper

Designed Floating Life: 15 Years

Constant Current Discharge Characteristics

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the minimum values.
