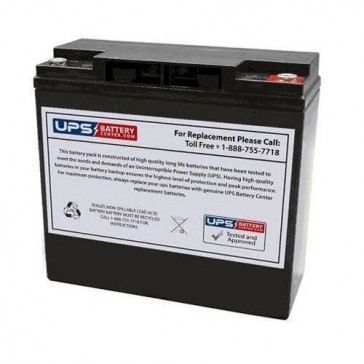

12V 22Ah Deep Cycle Sealed Lead Acid Battery with M5 Terminals

Features of the TLV12220M5DC - 12V 22Ah Deep Cycle Sealed Lead Acid Battery with M5 Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge

Applications

• UPS Standby Power Applications
• Data Centers
• Emergency 911 Centers
• Hospitals & Medical Applications
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Alarm Devices

Product Specifications

Dimensions
Terminal Type: M5
Length (mm/inch): 181/7.13
Width (mm/inch): 77/3.03
Height (mm/inch): 167/6.57
Total Height (mm/inch): 167/6.57
Approx. Weight (kg/lbs): 6.2/13.6

Performance Characteristics

Cells Per Unit: 6

Voltage Per Unit: 12

Capacity: 22Ah@20hr-rate to 1.75V per cell @25°C

Internal Resistance: Approx. 14mΩ

Maximum Discharge Current: 264A (5 sec)

Cold Cranking Ampere (CCA): 190A

Maximum Charging Current: 6.6A

Reference Capacity:
C2: 16.1Ah
C3: 17.2Ah
C5: 18.9Ah
C20: 22Ah

Float Charging Voltage:
13.7 V~13.9 V @ 25°CTemperature Compensation: -3mV/°C/Cell

Cycle Use Voltage:
14.6 V~14.8 V @ 25°CTemperature Compensation: -4mV/°C/Cell

Operating Temperature Range:
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C

Normal Operating Temperature Range: 25°C ± 5°C

Self Discharge:
Battery can be stored for up to 6 months at 25°C
and then recharging is recommended.

Monthly Self-discharge ratio is less than 3% at 25°C.
Please charge batteries before using

Container Material: A.B.S. UL94-HB, UL94-V0 Optional.

Constant Current Discharge Characteristics

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.
