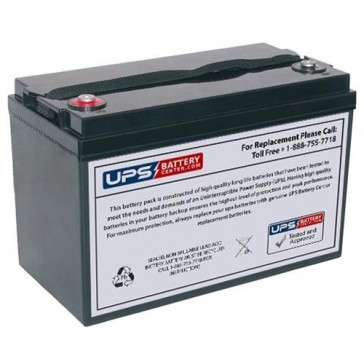

12V 100Ah Sealed Lead Acid Battery with M8 Terminals

Features of the TLV121000 - 12V 100Ah Sealed Lead Acid Battery with M8 Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge

Applications

• UPS Standby Power Applications
• Data Centers
• Emergency 911 Centers
• Hospitals & Medical Applications
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Alarm Devices

Product Specifications

Dimensions
Terminal Type: M8 - Insert Terminals
Length (mm/inch): 330/13
Width (mm/inch): 171/6.73
Height (mm/inch): 215/8.46
Total Height (mm/inch): 220/8.66
Approx. Weight (kg/lbs): 32/70.6

Performance Characteristics

Nominal Voltage: 12V

Number of Cell: 6

Nominal Capacity 77ºF (25ºC)
10HR (10.8V): 100Ah
5HR (10.5V): 87.5Ah
1HR (4.80V): 66.2Ah

Internal Resistance
Fully Charged battery 77ºF (25ºC): Approx. 5.7mΩ

Self-Discharge (25°C)
3% of capacity declined per month at 20°C (average)

Operating Temperature Range
Discharge: -20～60°C
Charge: -10～60°C
Storage: -20～60°C

Maximum Discharge Current 77ºF (25ºC): 900A (5 sec)

Short Circuit Current: 2100A

Charge Methods: Constant Voltage Charge 77°F (25°C)
Cycle Use: 2.40-2.45VPC
Maximum Charging Current: 30A
Temperature Compensation: -30mV/°C

Standby Use: 2.20-2.30VPC
Temperature Compensation: -20mV/°C

Constant Current Discharge Data

Constant Power Discharge Data

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.

Battery Construction
